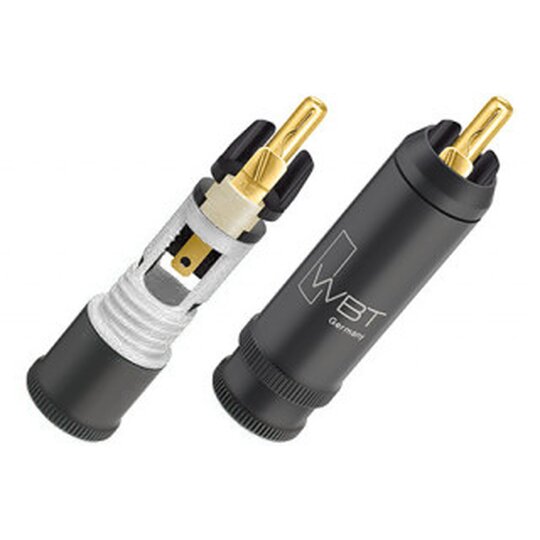

WBT RCA cinch cable connector WBT-0114 Cu White

Item number: WBT-0114-Cu-W

Category: Start


30,50 €

including 19% VAT., plus shipping (kleinteile)

on order

Delivery status: 5



Red
White
Yellow

Description

The clamping mechanism, which works in the same way as the chuck device in a drill, firmly clamps the outer contact against the RCA socket. The high clamping pressure not only guarantees a secure connection but also minimises transition resistance. In addition, any size variation in the outer contact of a socket is compensated for, thereby ensuring a perfect fit.

The clamping sleeve is designed with two sections so that the front section moves freely as the rear section is turned. This eliminates the risk of torsional strain on the contact elements.

The central pin is slotted and ideally formed thereby giving a firm yet elastic contact which ensures lasting and reliable electrical connection with absolutely minimal transition resistance.

The metal parts are made from a special copper alloy and are 24 carat gold-plated to prevent oxidation, which could negatively impact on contact quality.

The insulation within the connector is made from heat resistant Teflon*, a distinct advantage when soldering connection cables, particularly when working with the higher soldering temperatures of lead-free solder. WBT recommends the surface friendly silver solder WBT-0800 (see also solder connection).

When combined with WBT RCA sockets, the contacts are positioned in such a way that the outer conductor is in contact before the inner conductor, thereby preventing undesirable or even harmful voltage peaks.

A Torx screw provides reliable cable strain relief on the cable.

*Teflon is a registered trademark of Dupont.

Wideband capable (up to 400 MHz)
low eddy current through mass reduction
excellent shielding against electromagnetic interfering fields
cable entry up to 9 mm ø
Waveresistance: 75 Ohm
All RCA housing type sockets can be installed with the impact sound interrupter WBT-0718.


Shipping weight: 0,10 Kg
